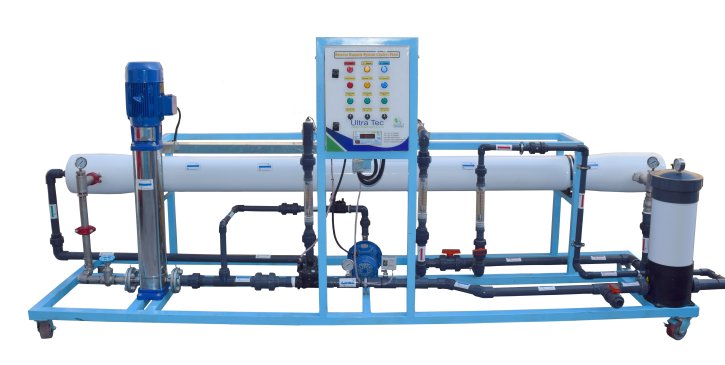

20,000 GPD Brackish Water RO Plant
High-Quality Water Treatment from an ISO 9001:2015 Certified Company
At Ultratec Water Treatment Company UAE, we take pride in providing high-quality water treatment solutions to our customers. Our 20,000 GPD Brackish Water RO Plant is no exception. With advanced Reverse Osmosis (RO) technology, this plant can remove impurities and contaminants from brackish water, ensuring that the water produced is of the highest quality. Whats more, Ultratec Water Treatment Company UAE is an ISO 9001:2015 certified company, meaning that our products and services meets to the highest standards of quality and reliability.
Efficient and Cost-Effective Water Treatment Solutions
At Ultratec Water Treatment Company UAE, we understand that our customers want efficient and cost-effective water treatment solutions. Thats why our 20,000 GPD Brackish Water RO Plant is designed to be both efficient and cost-effective. With a high recovery rate, this plant minimizes water wastage and reduces operating costs. Additionally, our RO plant is built with high-quality components and features a robust design, ensuring reliable operation and minimizing downtime.
Customizable Water Treatment Solutions to Meet Your Needs
At Ultratec Water Treatment Company UAE, every customer has unique water treatment requirements. Thats why our 20,000 GPD Brackish Water RO Plant is highly customizable to meet your specific needs. We offer a range of options and accessories that can be added to the system to enhance its performance and functionality. With our expertise and experience, we can help you choose the right options to optimize the performance of your RO plant.
Features
- Water making : 20,000 GPD
- Flow rate 72 metre cube at 25 deg C
- Rejection 95-98%
- Recovery 50-60%
- RO membrane-brand : CSM (8040 (400 ft sq) x3 pcs)
- RO pressure vessel : FRP (8040x1pcs)
- HI-pressure pump : 4 kW x 380V x 50 Hz (Brand : Grundfos, model CRI 5-29,
- flow rate : 5T/hr, lift head : 165M)
- Pre filter TK 7-20
- Pure water flow meter and drain flow meter
- Low pressure and high pressure valve
- RO frame by stainless steel welding
- All pressure display on main panel
- High pressure SUS304
- Low pressure pipe sch # 80 UPVC
- Flush valve, feed valve and adjust valve.
What This System Does?
The 20,000 GPD Brackish Water RO Plant is designed to reduce dissolved salts, minerals, and other impurities from brackish water using reverse osmosis technology. It is suitable for industrial and commercial applications requiring treated water for process, utility, or potable water systems.
Every RO plant is engineered for site conditions and configured based on feedwater analysis, required permeate quality, daily production capacity, and operating requirements. Pretreatment, membrane selection, and recovery are determined during the system design process and verified during commissioning.
How It Works?
Feedwater first passes through the pretreatment stage to reduce suspended solids and help protect the reverse osmosis membranes from fouling and scaling. The high-pressure pump then delivers the feedwater to the RO membranes, where dissolved salts are separated into permeate and concentrate streams.
The treated permeate is collected for storage or distribution, while the concentrate is discharged according to the system design. Flow meters, pressure indicators, and control valves allow operators to monitor system performance during operation.
Performance Parameters
Pretreatment is critical to maintaining membrane integrity and long-term performance. Depending on feedwater quality, pretreatment may include:
Removal of suspended solids and turbidity
Iron and manganese reduction
Hardness control to minimize scaling
Dechlorination to protect RO membranes
Exclusion of oil and grease contaminants
The system is compatible with upstream treatment units and downstream processes such as disinfection, remineralization, or blending.
Models
Features
Standard Features:
- 20,000 GPD reverse osmosis production capacity
- Designed for brackish water treatment
- Engineered for site conditions
- Configured based on feedwater analysis
- Stainless steel skid-mounted frame
- High-pressure reverse osmosis pump
- FRP membrane pressure vessels
- Industrial reverse osmosis membranes
- Pretreatment filter arrangement
- Permeate and concentrate flow meters
- High and low-pressure monitoring
- Main control panel with pressure indication
- SUS304 high-pressure piping
- Schedule 80 UPVC low-pressure piping
- Feed, flush, and adjustment valves
- Designed for continuous operation
Available Options:
- Multimedia filtration systems
- Activated carbon filtration
- Water softener pretreatment
- Chemical dosing systems
- Automatic flushing system
- CIP (Clean-in-Place) system
- Conductivity and TDS monitoring
- PLC and HMI control panel upgrades
- Remote monitoring capability
- Post-treatment systems
- Installation and commissioning support
- Preventive maintenance agreements
Applications
The 20,000 GPD Brackish Water RO Plant is suitable for industrial and commercial water treatment applications.
- Manufacturing facilities
- Food and beverage processing
- Hotels and resorts
- Hospitals and healthcare facilities
- Construction camps
- Pharmaceutical industries
- Boiler feed water systems
- Process water treatment
Why Ultratec?
Ultratec Water Treatment Equipment LLC is an ISO 9001:2015 certified company based in Dubai, UAE, supplying engineered reverse osmosis systems across the UAE, GCC, and Middle East. Every RO plant is configured according to feedwater analysis, application requirements, and site conditions rather than supplied as a fixed standard system. Components are sourced from certified global manufacturers, and our UAE-based technical team provides installation support, commissioning, maintenance, and operational assistance throughout the project lifecycle.
Frequently Asked Questions
The system is designed for brackish water applications, but the final configuration depends on feedwater analysis. Water quality determines the pretreatment process, membrane selection, and operating parameters.
Pretreatment may include multimedia filtration, activated carbon filtration, water softening, or chemical dosing depending on feedwater quality. Proper pretreatment helps reduce membrane fouling and scaling while supporting reliable operation.
Routine maintenance includes monitoring operating pressures, flow rates, conductivity, and replacing consumables as required. Membrane cleaning through a CIP system may be recommended based on operating conditions.
Yes. Industrial RO plants are available in multiple production capacities and are configured according to feedwater quality, recovery requirements, available installation space, and application needs.
Yes. Our UAE-based technical team provides installation support, commissioning, operator guidance, maintenance services, and after-sales technical assistance for industrial reverse osmosis systems.
