• Reverse Osmosis commonly referred to as RO, is a process where you de-mineralize or deionize water by pushing it under pressure through a semi-permeable Reverse Osmosis Membrane.

    Osmosis To understand the purpose and process of Reverse Osmosis you must first understand the naturally occurring process of Osmosis.

    Osmosis is a naturally occurring phenomenon and one of the most important processes in nature. It is a process where a weaker saline solution will tend to migrate to a strong saline solution. Examples of osmosis are when plant roots absorb water from the soil and our kidneys absorb water from our blood.

    Reverse Osmosis is the process of Osmosis in reverse. Whereas Osmosis occurs naturally without energy required, to reverse the process of osmosis you need to apply energy to the more saline solution. A reverse osmosis membrane is a semi-permeable membrane that allows the passage of water molecules but not the majority of dissolved salts, organics, bacteria and pyrogens. However, you need to 'push' the water through the reverse osmosis membrane by applying pressure that is greater than the naturally occurring osmotic pressure in order to desalinate (de-mineralize or deionize) water in the process, allowing pure water through while holding back a majority of contaminants.

  • PRODUCTS

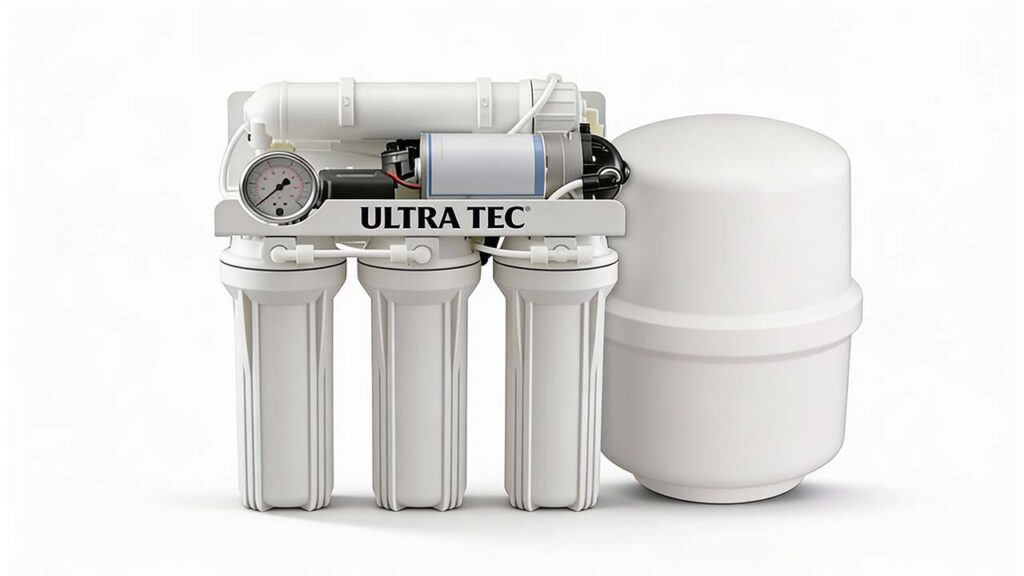

  • 8 Stages Ultratec RO System for Home or Domestic Use

    Specifications:

    8 Stage Alkaline R.O. water Purifier
    10” Sediment Filter
    10” GAC Filter
    10” Carbon Block Filter
    Booster Pump
    RO Dow Membrane
    Post in-line GAC Filter
    Taste & Odor Filter
    Mineral Filter
    Alkaline Filter
    Stand for the filtration Unit
    Filtered Water Storage and Pressure Tank

  • Benefits of Using Alkaline Water:

    1.Helpful for Detoxification
    2. Reduces Acid Reflux
    3. Helps Improve Bone Health
    4. Provides Antioxidant
    5. Essential for Heart Health




  • R.O Plants

    We have with us rich experience in successfully handling the demands of precision designed and optimally functioning Industrial RO/ Reverse Osmosis Plants. These industrial reverse osmosis Plants can be also made available in customized specifications with configurations to suit individual requirements of output water that varies from normal drinking application to usage like in pharmaceutical production The offered RO plants are designed to successfully handle demands of water filtration through utilizing following processes of purification:
    Intake
    Pre-treatment
    High Pressure Pump
    Membrane Assembly
    pH Adjustment
    Disinfection

  • Application - Reverse Osmosis Systems

    Some of the applications these RO water filtration systems are used in include providing pure water for:
    Safe Drinking Water
    Boiler Feed Water
    Ion Exchange Pre-treatment
    Beverage Production

    Features:

    The offered industrial RO plants come with fully operational features that make these deliver smooth operations for many years to come. These features include:
    RO System manufactured in a well integrated industrial reverse osmosis plant
    Use of approved and tested components in system construction
    Industrial RO plants configured for achieving optimum recovery of water
    Adjustable valve provision for adjusting waste water and recycle flow of water
    Offering easy and quick installation
    Output production rates from 2000 GPD to 20 000 GPD





  • Brackish RO System

    Brackish water or briny water is water that has more salinity than fresh water, but not as much as seawater. It may result from mixing of seawater with fresh water, as in estuaries, or it may occur in brackish fossil aquifers. The word comes from the Middle Dutch root "brak". Certain human activities can produce brackish water, in particular, civil engineering projects such as dikes and the flooding of coastal marshland to produce brackish water pools for freshwater prawn farming. Brackish water is also the primary waste product of the salinity gradient power process. Because brackish water is hostile to the growth of most terrestrial plant species, without appropriate management it is damaging to the environment.

  • Application - Reverse Osmosis Systems

    Fully Equipped and Customizable
    Components Easily Accessible
    Pre-Plumbed, Wired, and Assembled
    Individually Tested and Preserved
    Low Operating and Maintenance Costs
    Easy Maintenance and Servicing
    1-Year Limited Warranty

    Features:

    Computer Controll Panel
    Low-Pressure Monitoring Alarm
    Dual TDS Monitoring
    Feed Flush
    Tank Level Input
    Vertical Multi-Stage Stainless Steel Booster Pump
    Feed Solenoid Valve with Electronic Bypass
    Feed Low-Pressure Switch
    Pump High-Pressure Switch
    Ultratec® Permeate and Concentrate Flow Meters
    Pre-Filter 0-100 psi Panel Mounted Glycerin Filled Gauges
    Pump Discharge and Concentrate 0-600 psi Panel Mounted Glycerin Filled Gauges
    5 Micron Sediment Filter
    O-Ring & Heavy-Duty Filter Housing
    Low Energy Membrane Elements
    Stainless Steel Membrane Housings-450 psi
    Clean-in-place (CIP) Ports
    High-Pressure Stainless Steel Tubing and Fittings

industrial-ro-plant




  • Sea Water RO Plants

    Sea water has high levels of dissolved minerals and salts and it can be ranging from 35,000PPM to 45,000 PPM. The presence of these impurities makes the water less desirable or unusable for many applications. Sea water contains relatively high levels of dissolved salts in form of sodium, Depending on the location, it can range from 35,000 to 45,000ppm. We manufacture both skid mounted brackish water package systems & customized according to your needs, and have been doing so since 2001.

Custom Built Sea Water RO Plants Standard Features

The major components in the Brackish Water RO System include:
  • Cartridge / bag filter
  • Pressure vessels with spiral wound membrane elements
  • High pressure pump
  • Control and instrumentation with fail-safe devices
Depending on the feed water quality, BWRO System usually requires some pre-treatment systems such as:
  • Sedimentation
  • Coagulation and flocculation
  • Feed pump
  • Multimedia filter
  • Chemical dosing system
  • Ultra filtration system

industrial-ro-plant
